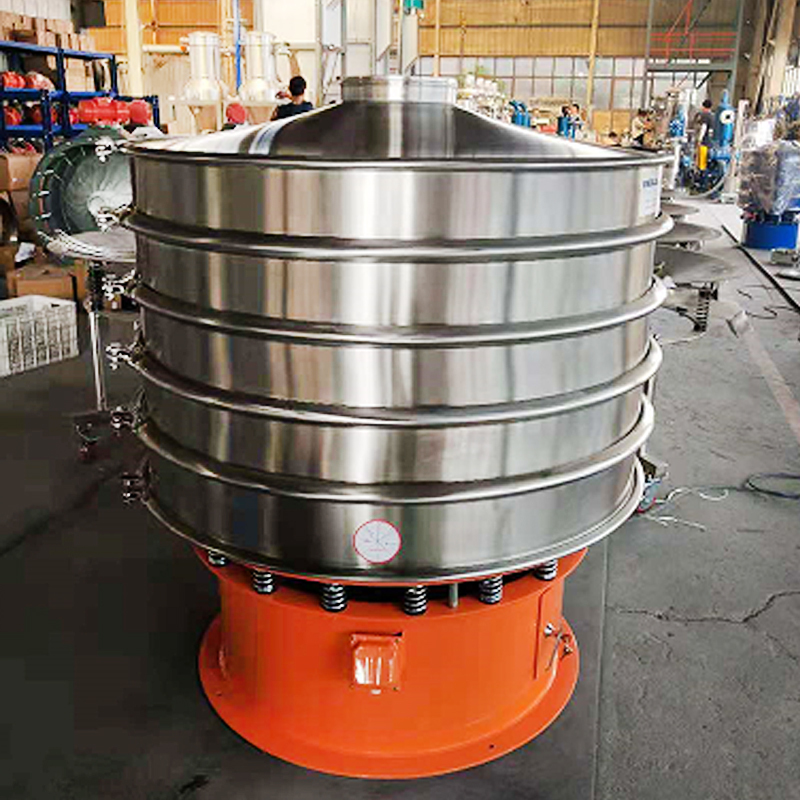

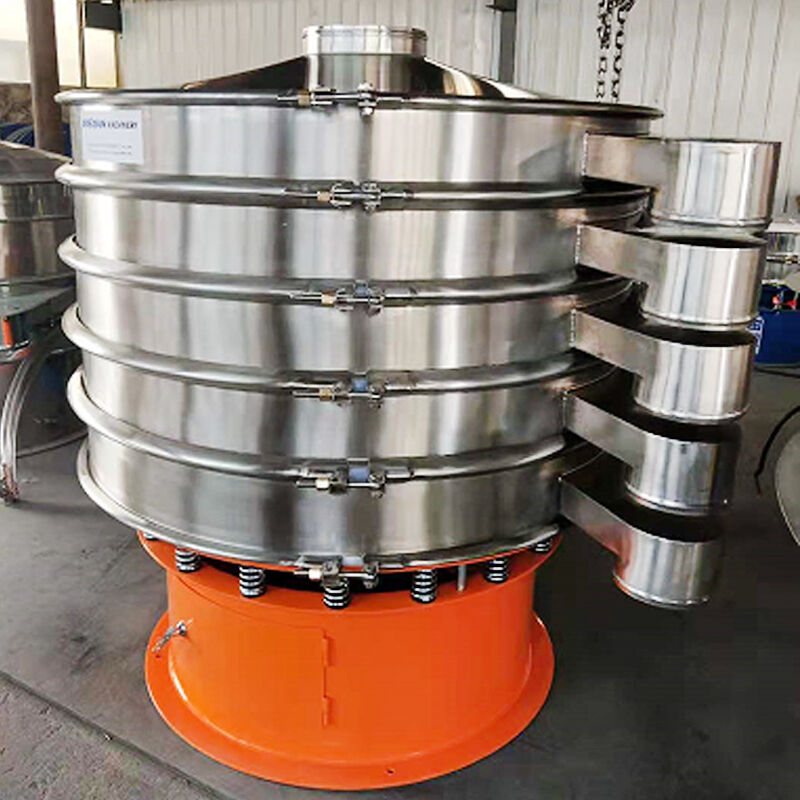

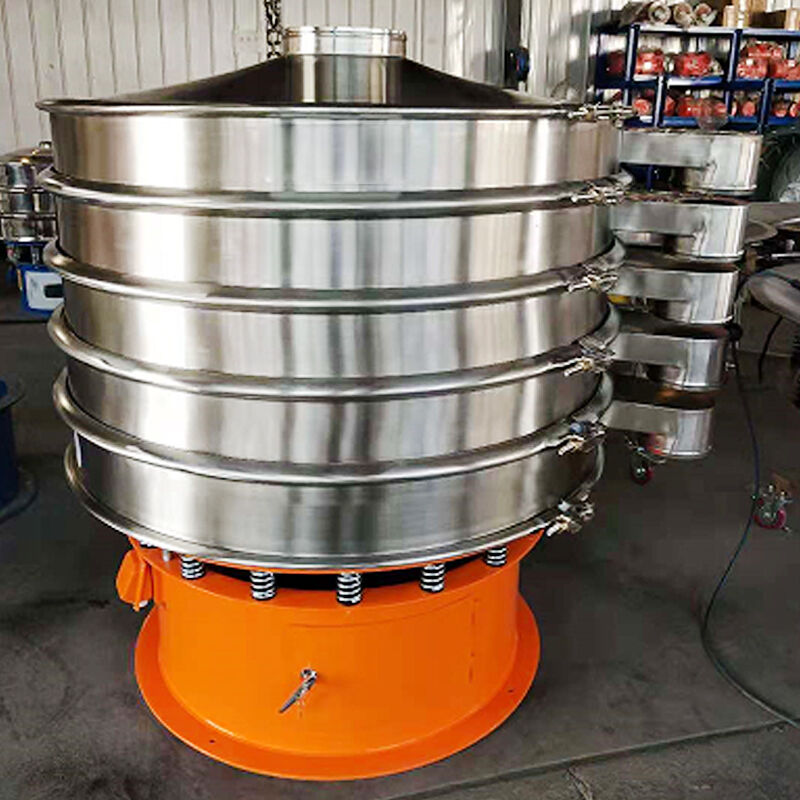

Vibratory Screening Machine

Product description

The rotary vibrating screen relies on the eccentric blocks of the vertical vibration motor to generate three-dimensional composite vibration. The materials perform a rotational expansion movement on the screen surface to complete classification and impurity removal. The entire machine is mostly made of stainless steel and has a fully sealed structure. It can be stacked multiple layers for screening, the screen mesh can be replaced easily, the noise is low, the floor space is small, and it can handle powders, particles, and slurries. It is widely used in the chemical and food industries for fine screening.

Working principle
The vibrating motor's eccentric hammers on the top and bottom rotate to generate three-dimensional vibration force, which drives the screen to rotate. The materials enter from the center and spread outward. Fine particles pass through the screen while coarse particles are discharged along the edges. Adjusting the angle of the heavy hammer can change the screening effect.

Features & Benefits

1. Three-dimensional rotary screening, with high classification accuracy and a wide range of screening mesh sizes.
2. Stainless steel sealed body, no dust leakage during operation, clean and hygienic.
3. Supports multiple layers of screen mesh stacking, enabling multi-specification material sorting in a single operation.
4. Simple screen mesh disassembly and assembly, short replacement time, and convenient maintenance.
5. Compact body with minimal floor space, low vibration during operation, and low noise.
6. Suitable for dry and wet powders, particles, and slurry materials.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening
