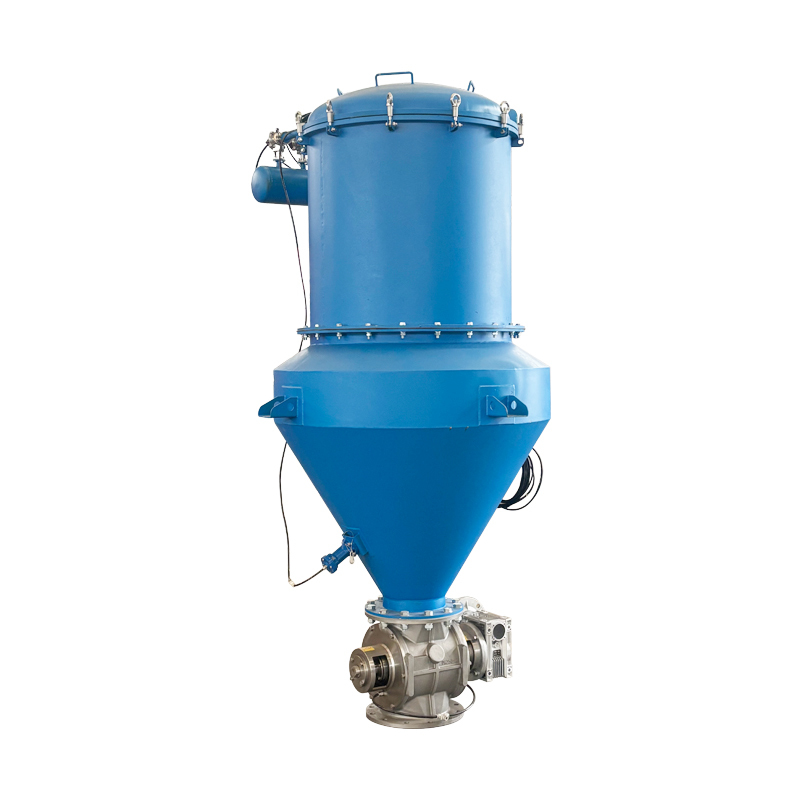

Vacuum Conveyor

Product description

The continuous vacuum feeding machine is an efficient powder and granular material conveying equipment. It achieves the sealed and smooth transfer of materials through an automatic cyclic negative pressure method. This equipment can seamlessly integrate with the production process, effectively control dust during the conveying process, keep the environment clean, and ensure the stability of material properties. Its structure is compact, the operation is simple, and it can flexibly adapt to different feeding and receiving positions, significantly improving the automation and continuity of material circulation, and is a reliable and easy-to-maintain industrial conveying solution.

Working principle

1. Feed-in: The system creates a vacuum, and the pressure difference causes the materials to be drawn into the sealed silo through the pipeline.
2. Filtration: The filters inside the silo intercept the materials, and the clean air is separated and discharged.
3. Discharge: After the feed-in process is completed, the vacuum is released, and the discharge valve is opened, allowing the materials to be discharged by gravity.
4. Cleaning: A pulse airflow blows against the filters to remove the adhered powder and maintain the filtration efficiency.

Product features

1. Sealed and clean: Fully enclosed transportation, preventing dust from escaping, ensuring environmental and material cleanliness.
2. Highly efficient and automatic: Automatically cycles and operates continuously, achieving batched continuous transportation, significantly reducing manpower requirements.
3. Compact and flexible: High structural integration, requiring small installation space, with adaptable layout.
4. Easy maintenance: Modular design, key components are easy to clean and replace.
5. Protecting materials: The transportation process is gentle, without damaging the material particles, maintaining their original state.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

Production line diagram

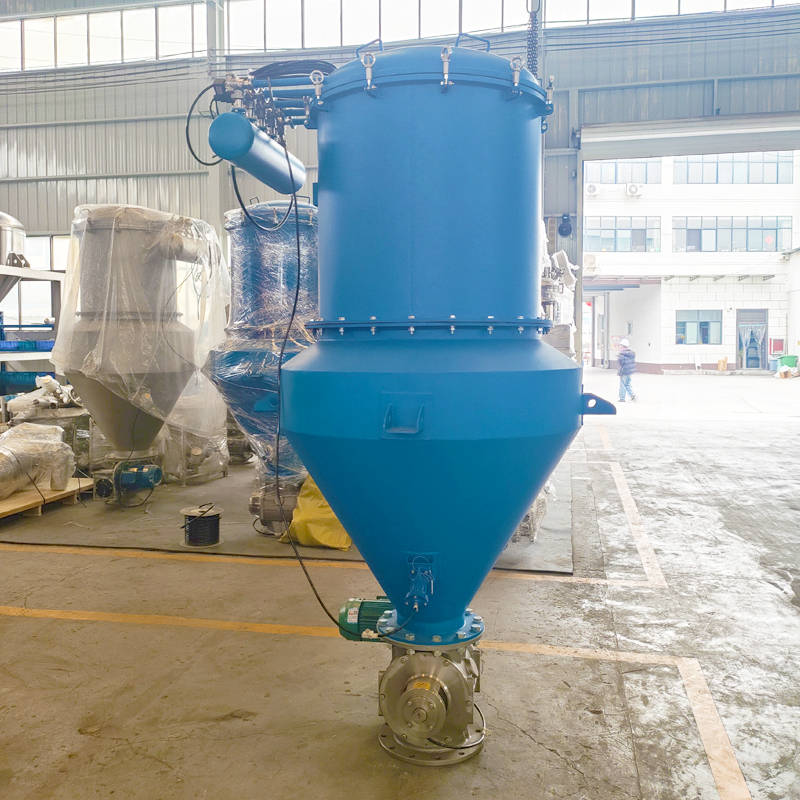

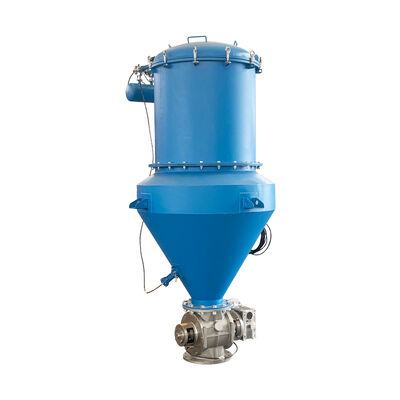

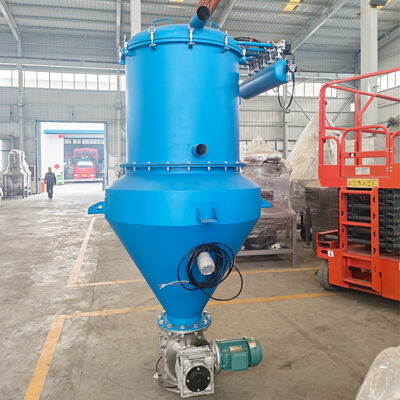

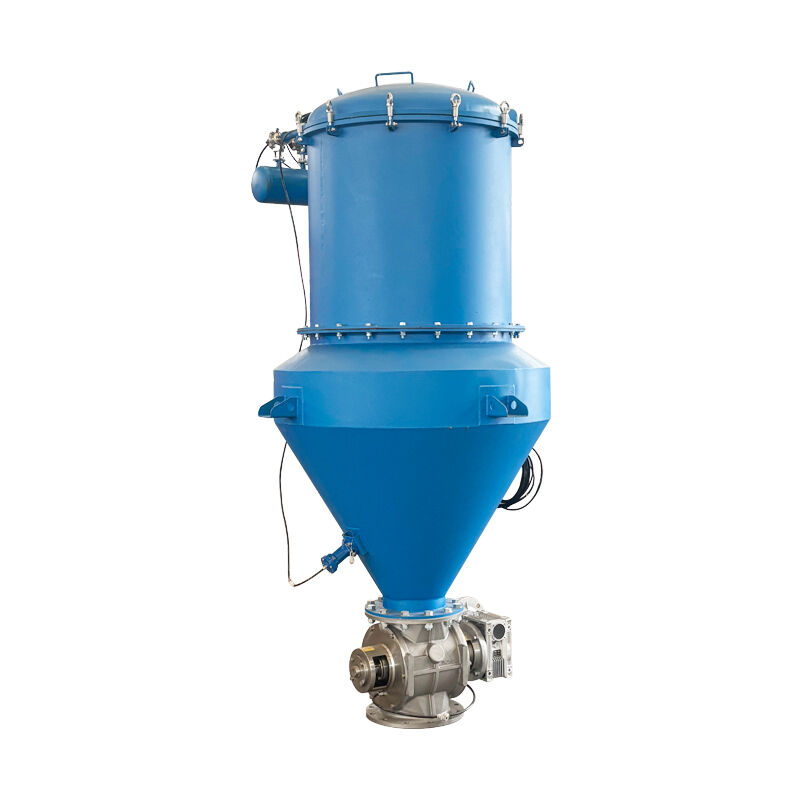

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
